| MOQ: | 500 mét |
| giá bán: | US$ 0.5~56 / meter |
| bao bì tiêu chuẩn: | Trống gỗ |
| Thời gian giao hàng: | một tuần hoặc 10 ngày |
| phương thức thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 10000 km mỗi tuần |

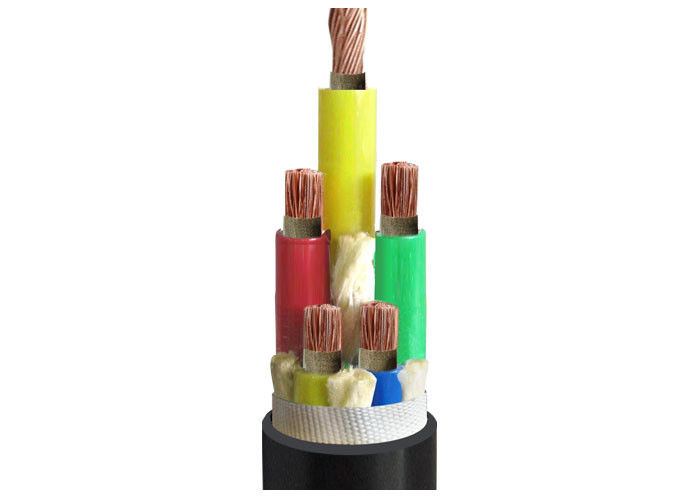

4 core Copper MIca Xlpe PVC Fire-resistant Electric Cable
Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.
Application Standards
International: IEC 60502, IEC 60228, IEC60332
China: GB/T 12706 1-2008
Other standards such as BS, DIN and ICEA upon request
Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Constructions
| Code | : | N-YJV |
| Standarts | : | TS IEC 60502, IEC 502, VDE 0271, BS 6346 |
| Construction | : | 1- Solid, Stranded or Flexible Copper Conductor |
| 2.-MICA TAPE | ||
| 3- XLPE insulation (cross-linked PE) or PVC | ||
| 4- PVC outer sheath, or PE, LSOH | ||
| Application | : | Preferably for installation indoors, in cable ducts and in industrial plants or |
| switching stations, underground installation with additional protection where | ||
| mechanical damage is unexpected. | ||
| Technical Data | : | Max. operating temperature 90 ºC |
| Short circuit temperature 250 ºC |
Code Designation
YJ: XLPE insulation
V: PVC insulation or sheath
Technical data
Rated voltage: 0.6/1kv Voltage
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.
XLPE Insulation: Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D
Certificates
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
PACKING AND SHIPPING
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Quote Request Information
1. Material of conductor/insulation/sheath.
2. Voltage classes.
3. Cross section, Short circuit current capacity, tension strength.
4. Order Quantity
Our Services
1.We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
2.We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples for below 20 centimeter can be provided freely.
|
|
