| MOQ: | 800Meter |
| giá bán: | USD 6.25-29.99/M |
| bao bì tiêu chuẩn: | Trống gỗ |
| Thời gian giao hàng: | 10 ngày |
| phương thức thanh toán: | L / C, T / T, |
| Khả năng cung cấp: | 100KM / tuần |

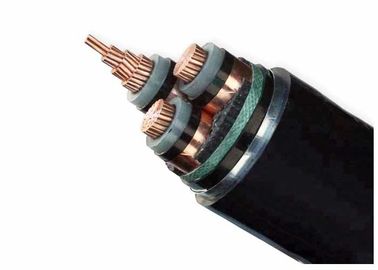

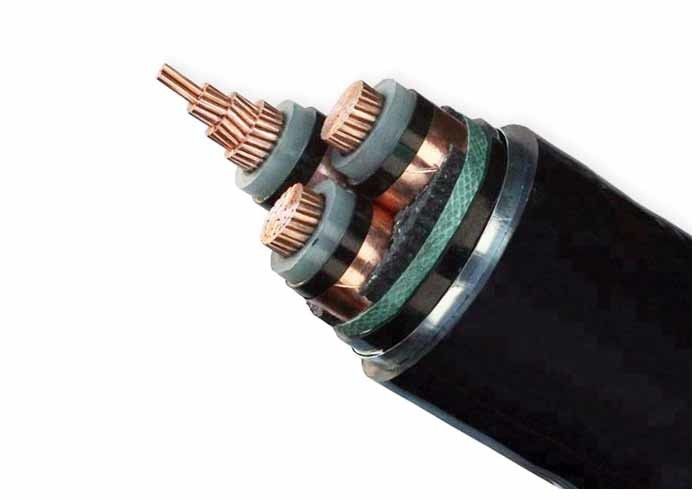

6/10kv Three Core Xlpe Insulated Steel Tape Armour Power ZR-PVC Power Cable
Construction
CU/XLPE/STA/PVC Armoured Electrical Cable
- Round bare copper core stranded according to IEC 60228
- Inner semi-conductive
- Core insulation XLPE
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel TAPE armour (STA)
- PVC outer sheath (FR-PVC)
Code name:
YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring
22:Steel tape armoring
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
Application
Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
| MV(18v/30kv) Power Cable | ||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core | ||
| YJV, N2XSY;PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | ||
| Al Core | ||
| YJLV, NA2XSY; PVC sheathed power cable | ||
| YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
Standard
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Technical data:
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Dia. Of Armor Wire | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 50 | 10/2.52 | 8 | 1.8 | 3.15 | 3.5 | 80.0 | 9376 | 0.387 | 63 | 175 | 180 |
| 3 × 70 | 14/2.52 | 8 | 1.8 | 3.15 | 3.6 | 84.0 | 10426 | 0.268 | 63 | 220 | 220 |
| 3 × 95 | 19/2.52 | 8 | 1.8 | 3.15 | 3.7 | 87.0 | 11475 | 0.193 | 63 | 255 | 265 |
| 3 × 120 | 24/2.52 | 8 | 1.8 | 3.15 | 3.8 | 90.0 | 12598 | 0.153 | 63 | 290 | 300 |
| 3 × 150 | 30/2.52 | 8 | 1.8 | 3.15 | 3.9 | 93.0 | 13855 | 0.124 | 63 | 330 | 340 |
| 3 × 185 | 37/2.52 | 8 | 1.8 | 3.15 | 4.0 | 96.0 | 15233 | 0.0991 | 63 | 435 | 380 |
| 3 × 240 | 48/2.52 | 8 | 2.0 | 3.15 | 4.2 | 102.0 | 17481 | 0.0754 | 63 | 495 | 435 |
| 3 × 300 | 61/2.52 | 8 | 2.0 | 3.15 | 4.4 | 107.0 | 19731 | 0.0601 | 63 | 565 | 485 |
| 3 × 400 | 61/2.97 | 8 | 2.0 | 3.15 | 4.6 | 114.0 | 23422 | 0.0470 | 63 | 640 | 520 |
|
|
