| MOQ: | 200 m |
| giá bán: | USD 1-299 Per Meter |
| bao bì tiêu chuẩn: | Trống gỗ hoặc trống gỗ toàn bộ |
| Thời gian giao hàng: | 8-15 ngày |
| phương thức thanh toán: | L / C, T / T, Western Union, MoneyGram, |
| Khả năng cung cấp: | 100km mỗi tháng |

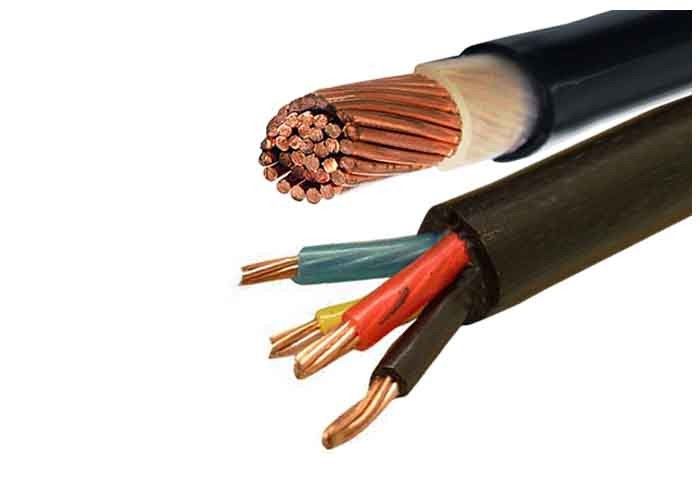

BS5467 Cu/XLPE/PVC/AWA/PVC 0.6/1kV Used for Fixed Installation
Cable Application
Cu/XLPE/PVC/AWA/PVC power cable may be used for fixed installation indoors and outdoors in cable ducts or directly in the ground.
| Conductor Material: | Copper, IEC60228 |
| Conductor Shape: | 50mm² up to 400mm² Circular |
| Conductor Flexibility: | Stranded class 2 |
| Outer Sheath: | PVC, IEC60502 |
| Inner Sheath: | PVC, IEC60502 |
| Insulation: | XLPE (Cross-linked Polyethylene), IEC60502 |
| Armour Type: | Aluminium wires |
| Colour: | Black |
| Lead Free: | Yes |
| Rated Voltage Uo/U (Um): | 600/1000V, BS5467 |
| Installation Temperature: | Minimum: 0°C Maximum: 60°C |
| Installation Type: | Outdoor Direct burial |
| Operating Temperature: | Minimum: -15°C Maximum: 90°C |
| Short-circuit Maximum Conductor Temperature: | 250°C |
| Flame Retardant: | IEC 60332-1 and BS EN 50265-2-1 |
| Bending Radius: | 50mm² up to 1000mm² = 6 x Ø |
Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.
