| MOQ: | 500 mét |
| giá bán: | US$0.51 - US$125 / Meter |
| bao bì tiêu chuẩn: | Trống gỗ |
| Thời gian giao hàng: | 10 ngày |
| phương thức thanh toán: | T/T, THƯ TÍN DỤNG |
| Khả năng cung cấp: | 21.000 KM mỗi tháng |

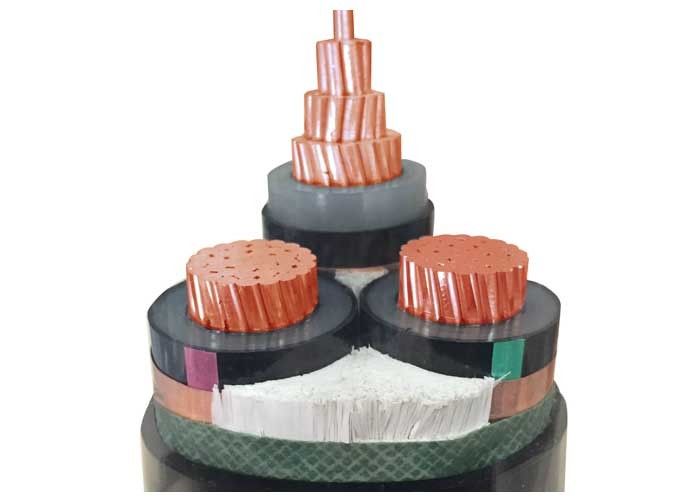

3 Cores MV XLPE Electrical Cable Copper Conductor For Industrial Plants
Application
Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Construction
1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires or tape
7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant
9 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Technical data:
|
Test voltage |
6 / 10 kV |
[kV] |
21 / 5 min. |
|
|
12 / 20 kV |
[kV] |
42 / 5 min. |
|
|
18 / 30 kV |
[kV] |
63 / 5 min. |
|
Temperature range |
in motion |
|
-20°C till +90°C |
|
|
fixed |
|
-20°C till +90°C |
|
Operating temperature |
short circuit |
°C |
250 |
|
Short circuit time |
max. |
[sec] |
5 |
|
Bending radius |
min. |
x diameter |
15 |
|
Flammability |
standard |
|
EN 50265-2-1 |
*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
MV(6 to 35kv) Power Cable Details
YJ: XLPE insulation
V: PVC sheath
32: Steel wire armoring—3 cores
22: Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant
|
MV(11kv 15kv 33kv) Power Cable |
||
|
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV |
No.of Core |
Conductor cross-section area(mm2) |
|
xlpe insulation |
1 core 3 core |
10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
|
Cu core |
||
|
YJV, N2XSY;PVC sheathed power cable |
||
|
YJV22;steel tape armoured,PVC sheathed power cable |
||
|
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable |
||
|
Al Core |
||
|
YJLV, NA2XSY; PVC sheathed power cable |
||
|
YJLV22;steel tape armoured,PVC sheathed power cable |
||
|
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable |
||
This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
Certificate
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
PACKING AND SHIPPING
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
|
|
