| MOQ: | 500m |
| giá bán: | negotiable |
| bao bì tiêu chuẩn: | trống sắt đóng gói (có bảo vệ) |
| Thời gian giao hàng: | 10-15 ngày làm việc sau khi nhận được khoản thanh toán tạm ứng |
| phương thức thanh toán: | T / T hoặc LC |
| Khả năng cung cấp: | 100km mỗi tháng |

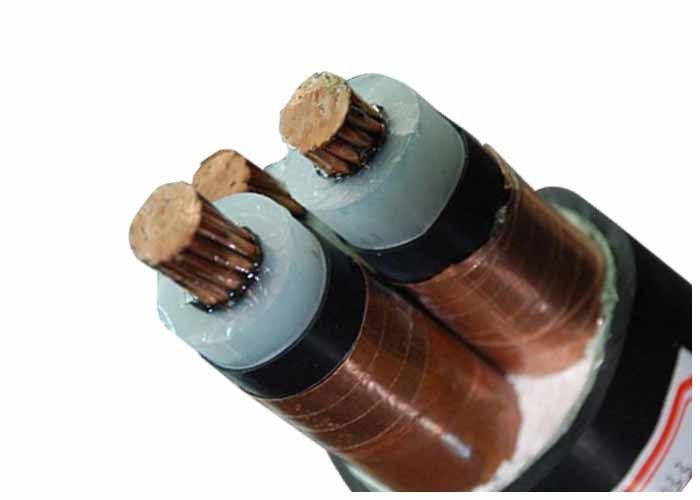

XLPE Insulated Power Cable three core with copper tape screen medium voltage power cable
Description:
0.6/1kv XLPE Insulated Electric Power cable
CU/XLPE/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO
Constructions:
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or customer requirement
Applications:
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards:
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area
below 300mm2, 140℃ when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Technical Specifications:
| Nom. Cross-section of conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 1 × 25 | 3.4 | 2 | 20.0 | 598 | 0.727 | 21 | 140 | 150 |
| 1 × 35 | 3.4 | 2 | 22.0 | 719 | 0.524 | 21 | 175 | 180 |
| 1 × 50 | 3.4 | 2 | 23.0 | 884 | 0.387 | 21 | 205 | 215 |
| 1 × 70 | 3.4 | 2 | 24.0 | 1097 | 0.268 | 21 | 260 | 265 |
| 1 × 95 | 3.4 | 2 | 26.0 | 1378 | 0.193 | 21 | 315 | 315 |
| 1 × 120 | 3.4 | 2 | 28.0 | 1658 | 0.153 | 21 | 365 | 360 |
| 1 × 150 | 3.4 | 2 | 30.0 | 1967 | 0.124 | 21 | 415 | 405 |
| 1 × 185 | 3.4 | 2 | 31.0 | 2335 | 0.0991 | 21 | 475 | 455 |
| 1 × 240 | 3.4 | 2 | 34.0 | 2908 | 0.0754 | 21 | 565 | 530 |
| 1 × 300 | 3.4 | 2 | 36.0 | 3507 | 0.0601 | 21 | 645 | 595 |
| 1 × 400 | 3.4 | 2.5 | 39.0 | 4503 | 0.0470 | 21 | 750 | 680 |
| 1 × 500 | 3.4 | 2.5 | 42.0 | 5479 | 0.0366 | 21 | 865 | 765 |
| 1 × 630 | 3.4 | 2.5 | 48.0 | 6952 | 0.0283 | 21 | 990 | 860 |
| 1 × 800 | 3.4 | 2.6 | 52.0 | 7120 | 0.0221 | 21 | 1140 | 950 |
| 1 × 1000 | 3.4 | 2.8 | 57.0 | 10500 | 0.0176 | 21 | 1250 | 1040 |
| 3 × 25 | 3.4 | 2.3 | 41.0 | 895 | 0.727 | 21 | 120 | 125 |
| 3 × 35 | 3.4 | 2.4 | 44.0 | 2293 | 0.524 | 21 | 145 | 155 |
| 3 × 50 | 3.4 | 2.5 | 46.0 | 2812 | 0.387 | 21 | 175 | 180 |
| 3 × 70 | 3.4 | 2.6 | 50.0 | 3508 | 0.268 | 21 | 220 | 220 |
| 3 × 95 | 3.4 | 2.7 | 53.0 | 4402 | 0.193 | 21 | 265 | 265 |
| 3 × 120 | 3.4 | 2.8 | 56.0 | 5319 | 0.153 | 21 | 305 | 300 |
| 3 × 150 | 3.4 | 2.9 | 59.0 | 6309 | 0.124 | 21 | 350 | 340 |
| 3 × 185 | 3.4 | 3.0 | 62.0 | 7319 | 0.0991 | 21 | 395 | 380 |
| 3 × 240 | 3.4 | 3.2 | 68.0 | 9218 | 0.0754 | 21 | 470 | 435 |
| 3 × 300 | 3.4 | 3.4 | 72.0 | 11159 | 0.0601 | 21 | 535 | 485 |
| 3 × 400 | 3.4 | 3.6 | 81.0 | 15107 | 0.0470 | 21 | 610 | 520 |
|
|
