| Nguồn gốc | Trung Quốc |
| Hàng hiệu | QINGDAO YICABLE CABLE |
| Chứng nhận | CE/IEC/KEMA/VDE |

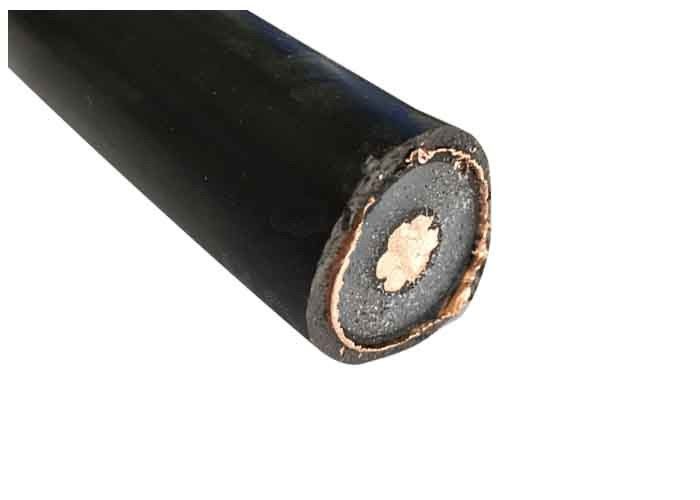

1-630mm2 Copper Conductor and Screen Single Core MV Power Cable up to 35kV
Cable Application
Cu/XLPE/CTS/PVC/SWA/PVC 11kV medium voltage power cable may be used for power networks, in fixed installation outdoors in cable ducts or directly in the ground. The cable consists of a Class 2 stranded copper conductor, semi conductive conductor screen, XLPE insulation, semi conducting layer with a plain copper tape screen, PVC bedding, Aluminium Wire Armour and red PVC outer sheath. 6350/11000 volts to BS6622 and IEC 60502-2, flame retardant to IEC 60332-1.
| Conductor Material: | Copper |
| Conductor Identification: | Coloured tape under screen |
| Conductor Shape: | Circular |
| Conductor Flexibility: | Stranded class 2 |
| Material of the Inner Semi-conductor: | Semi-conducting compound |
| Insulation: | XLPE (Chemical) |
| Armour Type: | Aluminium wires |
| Screen: | Copper tape |
| Outer Sheath: | PVC |
| Inner Sheath: | PVC |
| Material of the External Semi-conduct: | Extruded strippable |
| Colour: | Red |
| Lead Free: | Yes |
| Rated Voltage Uo/U (Um): | 6350/11000V to BS6622 & IEC 60502-2 |
| Installation Temperature: | Minimum: 0°C Maximum: 60°C |
| Installation Type: | Direct burial or in ducts |
| Operating Temperature: | Minimum: -15°C Maximum: 90°C |
| Short-circuit Maximum Conductor Temperature: | 250°C |
| Flame Retardant: | Yes, IEC 60332-1 |
| Bending Radius: | 15 x Ø |
Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
