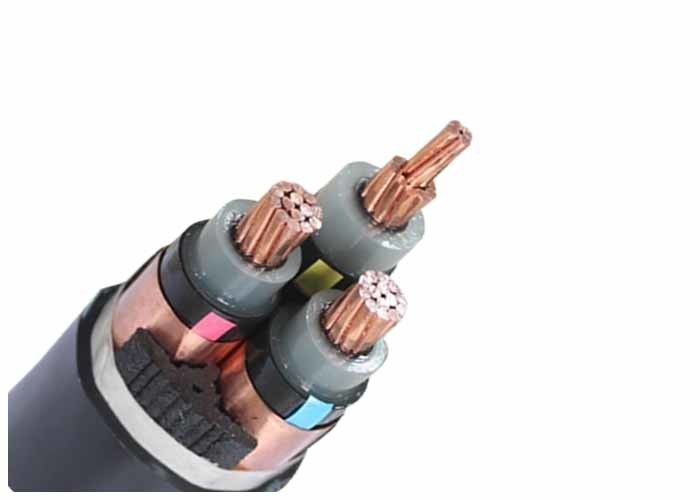

Electrical XLPE Insulated Power Cable 11kV 33kV IEC60502-2 Standard 3X185MM2

Electrical XLPE Insulated Power Cable 11kV 33kV IEC60502-2 Standard 3X185MM2

MOQ: 500 triệu
giá bán: USD 7.89-161.8/M
bao bì tiêu chuẩn: Trống gỗ
Thời gian giao hàng: 7 ngày
phương thức thanh toán: L/C, T/T
Khả năng cung cấp: 58726KM / tuần
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
KEMA/CE/ISO/TUV
Mức điện áp:
12,7 / 22KV
Vật liệu cách nhiệt:
XLPE
Độ dày cách nhiệt:
5,5mm
Bảo hành:
2 tuổi
Nhạc trưởng:
Đồng bị mắc kẹt
Cốt lõi:
Số ba
Làm nổi bật:

xlpe electrical cable

,

xlpe power cable

Mô tả sản phẩm

IEC60502-2 Standard 3X185MM2 Power Electrical Cable 11kV 33kV



Application



Media Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.



Property



This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.


1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.

2.In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.

3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.

4.Excellent electrical performance, resistance to chemical corrosion.

5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.



Construction



Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Conductor Screen Semi-conductor
Insulation XLPE(Cross-linked polyethylene)
Insulation Screen Semi-conductor
Metalic Shield Copper Tape Screen or Copper wire & copper tape Shield
Filler Fillers strip
Wrapping Tape Non woven wrapping tape or lsoh wrapping tape
Inner Covering Extruded PVC, or LSOH
Armour Steel Tape Armour
Overall Sheath PVC, FR-PVC, PE or LSOH





Specifications



MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core Al Core
YJV, N2XSY;PVC sheathed power cable YJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable
pvc insulation
Cu Core Al Core
VV(VY);PVC(PE)sheathed power cable VLV(VLY);PVC(PE)sheathed power cable
VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable
VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable




Technical data



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Sheath Thickness Steel Tape Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 35 7/2.52 5.5 1.8 2 × 0.5 2.9 58.0 4840 0.524 42 140 155
3 × 50 10/2.52 5.5 1.8 2 × 0.5 3.0 61.0 5463 0.387 42 165 180
3 × 70 14/2.52 5.5 2.0 2 × 0.5 3.1 65.0 6446 0.268 42 210 220
3 × 95 19/2.52 5.5 2.0 2 × 0.5 3.2 68.0 7457 0.193 42 255 265
3 × 120 24/2.52 5.5 2.0 2 × 0.5 3.3 71.0 8459 0.153 42 290 300
3 × 150 30/2.52 5.5 2.2 2 × 0.5 3.4 75.0 10555 0.124 42 330 340
3 × 185 37/2.52 5.5 2.2 2 × 0.5 3.5 78.0 11925 0.0991 42 375 380
3 × 240 48/2.52 5.5 2.2 2 × 0.8 3.7 83.0 13959 0.0754 42 435 435
3 × 300 61/2.52 5.5 2.2 2 × 0.8 3.9 88.0 16314 0.0601 42 495 485
3 × 400 61/2.97 5.5 2.3 2 × 0.8 4.1 95.0 19032 0.047 42 565 520



Product Features:

  1. Excellent Electrical and Physical Properties - Much less electricity transmission loss, energy saving.
  2. Capability of Carrying Large Currents - Higher operating temperature.
  3. Higher strength and stability - Anti thermal deformation, stress crack as well as Thermal Aging.
  4. Ease of Installation - No line layout limitation and topography or height restrictions.
  5. Free from Maintenance - Long service life up to 60 years.
