| MOQ: | 1000m |
| giá bán: | USD 0.4 To 10.5 per Meter |
| bao bì tiêu chuẩn: | Trống thép |
| Thời gian giao hàng: | 10-15 ngày |
| Khả năng cung cấp: | 8KM mỗi ngày |

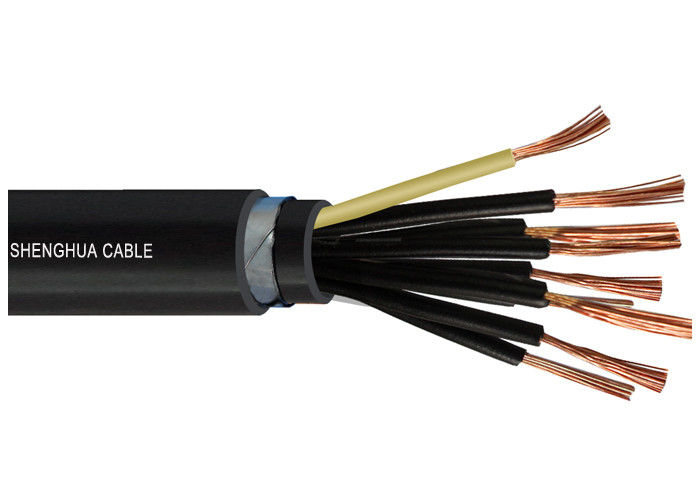

Class 5 Armored Control Cables , Flexible Wire Cable WDZB-KYJYR22 OEM
Descriptions:
Conductor: Flexible Conductor
Insualtion: XLPE
Screen: Copper Tape
Inner Sheath: LSOH Inner Sheath
Armor: Steel Tape
Sheath: LSOH Sheath
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 90°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 250°C;
Ambient temperature of installation not less than 0°C.
Application:
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.
Standard:
IEC Standard: IEC 60227, IEC60228.IEC60332,IEC60754
China Standard: GB9330,GB12666
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Why Choose SHAN CABLE
Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:
High quality cable product with competitive price;
OEM cable product
Custom design per specific cable requirements and budgets;
Fast and on-time delivery of cable;
Flexible business deal;
Chief cable engineer with over 40 years' experience;
Harmonious colleague and customer relationship;
All cable products 100% Inspection;
Comprehensive after-sale service.
Technology Data
| Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of Copper tape Screen mm |
Thickness of Steel Tape mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||||
| 4x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.5 | 16.2 | 0.001 | 7.41 | 470 |
| 4x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.5 | 17.5 | 0.0085 | 4.61 | 525 |
| 4x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.7 | 18.9 | 0.007 | 3.08 | 640 |
| 4x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 19.5 | 23.6 | 0.0065 | 1.83 | 970 |
| 5x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.4 | 17.3 | 0.001 | 7.41 | 526 |
| 5x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.5 | 18.7 | 0.0085 | 4.61 | 606 |
| 5x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 16.8 | 20.3 | 0.007 | 3.08 | 757 |
| 5x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 21.2 | 25.5 | 0.0065 | 1.83 | 1145 |
| 7x0.75 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 11.9 | 14.3 | 0.012 | 24.5 | 337 |
| 7x1.0 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 12.3 | 14.7 | 0.011 | 18.1 | 445 |
| 7x2.5 | 0.7 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.3 | 16.2 | 0.01 | 7.41 | 574 |
| 7x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 15.3 | 18.5 | 0.0085 | 4.61 | 723 |
| 7x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 18.1 | 21.8 | 0.007 | 3.08 | 930 |
| 7x10 | 1 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 22.8 | 27.4 | 0.0065 | 1.83 | 1430 |
| 10x0.75 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 13.9 | 16.8 | 0.012 | 24.5 | 470 |
| 10x1 | 0.6 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 14.5 | 17.5 | 0.011 | 18.1 | 580 |
| 10x1.5 | 0.7 | 0.05-0.1 | 2x0.2(0.3) | 1.5 | 16.2 | 19.6 | 0.011 | 12.1 | 780 |
| 10x2.5 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 18.9 | 22.8 | 0.01 | 7.41 | 986 |
| 10x4 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 20.6 | 24.9 | 0.0085 | 4.61 | 1256 |
| 10x6 | 0.8 | 0.05-0.1 | 2x0.2(0.3) | 1.7 | 22.6 | 27.2 | 0.007 | 3.08 | 1589 |
