Pipelines Control Fire Rated Electrical Cable Environmental Protection

Pipelines Control Fire Rated Electrical Cable Environmental Protection

MOQ: 1000m
giá bán: USD 0.4 To 10.5 per Meter
bao bì tiêu chuẩn: 100/200 mét trên mỗi cuộn hoặc trống thép bằng gỗ
Thời gian giao hàng: 10-15 ngày
Khả năng cung cấp: 8KM mỗi ngày
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
CE/KEMA/CCC/TUV
Thận trọng:
NHỰA PVC
Vỏ bọc:
NHỰA PVC
Vật chất:
Đồng
Loại dây dẫn:
Class1 hoặc Class2
Lõi số:
2 đến 61
Lợi thế:
Chống cháy
Màu:
Đen hoặc xám
Làm nổi bật:

multicore flexible cable

,

multi core electrical cable

Mô tả sản phẩm

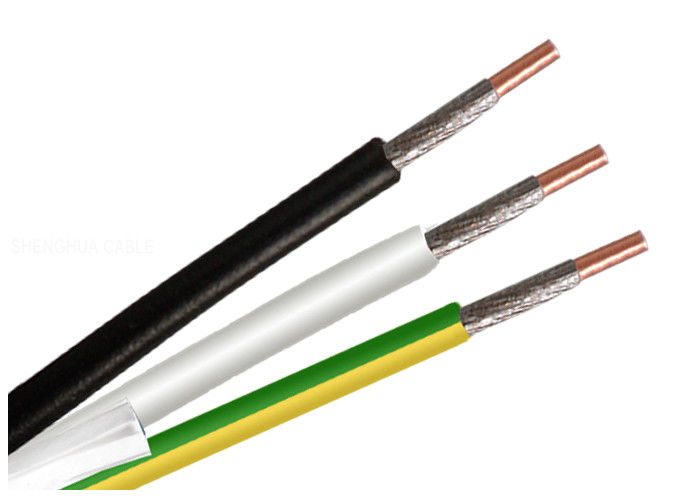

Pipelines Control Fire Rated Electrical Cable Environmental Protection

Construction:

Conductor: Solid or Stranded Copper Conductor
                   With Mica-tape
Insualtion: PVC
Sheath: PVC

Standard:

IEC Standard: IEC 60227, IEC60228,IEC 60331
China Standard: GB9330,GB12666
Other standards such as BS,DIN and ICEA upon request

The Advantage

We use the Mica-tape to cover the Conductor, when the fire accident happen,the mica-tape could hold the cable translate the electric for a while,so people can use electric equipment to keep themselves safe.



Technical data

Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100 or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D



Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.


Specifications:


Cross-Sectional
Area mm2
Thickness of
Insulation
Thickness of
Sheath
Overall Diameter Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
2x0.75 0.6 1.2 6.7 8.1 0.012 24.5 59
2x1 0.6 1.2 7 8.5 0.011 18.1 67
2x1.5 0.7 1.2 7.9 9.5 0.011 12.1 86
2x2.5 0.8 1.2 9 10.9 0.01 7.41 120
2x4 0.8 1.2 9.9 11.9 0.0085 4.61 167
2x6 0.8 1.2 10.8 13.1 0.007 3.08 220
3x0.75 0.6 1.2 7.1 8.5 0.012 24.5 71
3x1 0.6 1.2 7.4 8.9 0.011 18.1 82
3x1.5 0.7 1.2 8.3 10 0.011 12.1 108
3x2.5 0.8 1.2 9.5 11.5 0.01 7.41 154
3x4 0.8 1.2 10.5 12.4 0.0085 4.61 210
3x6 0.8 1.2 11.5 13.9 0.007 3.08 310


FAQ
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
