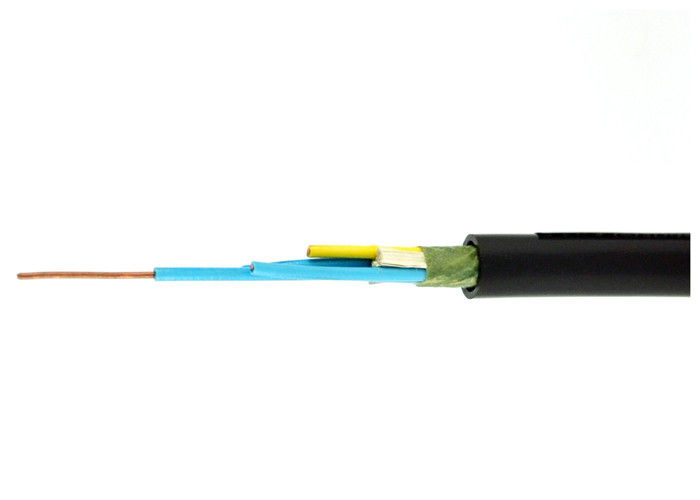

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench
Construction:
Conductor: Solid or Stranded Copper Conductor
Insualtion: PVC
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.
Specifications:
| Cross-Sectional Area mm2 |
Thickness of Insulation |
Thickness of Sheath |
Overall Diameter | Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
| min | max | ||||||
| 2x0.75 | 0.6 | 1.2 | 6.7 | 8.1 | 0.012 | 24.5 | 59 |
| 2x1 | 0.6 | 1.2 | 7 | 8.5 | 0.011 | 18.1 | 67 |
| 2x1.5 | 0.7 | 1.2 | 7.9 | 9.5 | 0.011 | 12.1 | 86 |
| 2x2.5 | 0.8 | 1.2 | 9 | 10.9 | 0.01 | 7.41 | 120 |
| 2x4 | 0.8 | 1.2 | 9.9 | 11.9 | 0.0085 | 4.61 | 167 |
| 2x6 | 0.8 | 1.2 | 10.8 | 13.1 | 0.007 | 3.08 | 220 |
| 3x0.75 | 0.6 | 1.2 | 7.1 | 8.5 | 0.012 | 24.5 | 71 |
| 3x1 | 0.6 | 1.2 | 7.4 | 8.9 | 0.011 | 18.1 | 82 |
| 3x1.5 | 0.7 | 1.2 | 8.3 | 10 | 0.011 | 12.1 | 108 |
| 3x2.5 | 0.8 | 1.2 | 9.5 | 11.5 | 0.01 | 7.41 | 154 |
| 3x4 | 0.8 | 1.2 | 10.5 | 12.4 | 0.0085 | 4.61 | 210 |
| 3x6 | 0.8 | 1.2 | 11.5 | 13.9 | 0.007 | 3.08 | 310 |
