| Nguồn gốc | Trung Quốc |
| Hàng hiệu | QINGDAO YICABLE CABLE |
| Chứng nhận | ASTM B231, EN 51082 |
| Material: | Aluminium | Application: | Overhead Power Line |
|---|---|---|---|
| Sectional Area: | 16mm²/.../800mm² | No. Of Single Wire: | 7pcs/.../61pcs |
| Insulation& Sheatrh: | No | Type: | AAC |

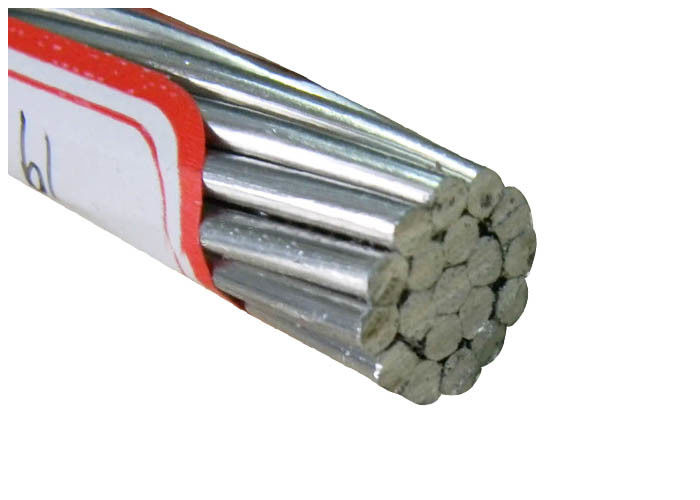

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC | |||||||
| All Aluminium Stranded Conductors (Class A & Class AA) ASTM B-231 | |||||||
| Code name | Area | Stranding and wire diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| AWG or MCM | mm2 | mm | mm | kg/km | kN | ohm/km | |
| PEACHBELL | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 2.49 | 2.1692 |
| ROSE | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 3.96 | 1.3624 |
| IRIS | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 5.97 | 0.8577 |
| PANSY | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 7.32 | 0.6801 |
| POPPY | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 8.73 | 0.539 |
| ASTER | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 11.00 | 0.4276 |
| PHLOX | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 13.47 | 0.339 |
| OXLIP | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 16.98 | 0.2688 |
| VALERIAN | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 20.62 | 0.2275 |
| SNEEZEWORT | 250 | 126.71 | 7/4.80 | 14.40 | 349 | 20.07 | 0.2275 |
| LAUREL | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 22.00 | 0.2133 |
| DAISY | 266.8 | 135.16 | 7/4.96 | 14.90 | 373 | 21.41 | 0.2133 |
| PEONY | 300 | 152.0 | 19/3.193 | 15.97 | 419 | 24.03 | 0.1896 |
| TULIP | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 26.95 | 0.1691 |
| DAFFODIL | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 28.04 | 0.1625 |
| CANNA | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 31.84 | 0.1431 |
| GOLDENTUFT | 450 | 228.0 | 19/3.909 | 19.55 | 629 | 34.99 | 0.1264 |
| SYRINGA | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 38.49 | 0.1193 |
| COSMOS | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 37.08 | 0.1193 |
| HYACINTH | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 40.35 | 0.1138 |
| ZINNIA | 500 | 253.35 | 19/4.12 | 20.60 | 698 | 38.88 | 0.1138 |
| DAHLIA | 556.5 | 282 | 19/4.346 | 21.73 | 777 | 43.27 | 0.1022 |
| MISTLETOE | 556.5 | 282 | 37/3.114 | 21.79 | 777 | 43.62 | 0.1022 |
| MEADOWSWEET | 600 | 304 | 37/3.233 | 22.63 | 838 | 47.03 | 0.0948 |
| ORCHID | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 49.85 | 0.0894 |
| HEUCHERA | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 50.95 | 0.0875 |
| FLAG | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 51.46 | 0.0813 |
| VERBENA | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 54.87 | 0.0813 |
| NASTURTIUM | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 58.74 | 0.0795 |
| VIOLET | 715.5 | 362.58 | 37/3.533 | 24.74 | 1000 | 56.09 | 0.0795 |
| CATTAIL | 750 | 380 | 61/2.817 | 25.35 | 1048 | 59.85 | 0.0759 |
| PETUNIA | 750 | 380 | 37/3.617 | 25.32 | 1048 | 58.75 | 0.0759 |
| LILAC | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 63.45 | 0.0715 |
| ARBUTUS | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 62.32 | 0.0715 |
| SNAPDRAGON | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 69.78 | 0.0632 |
| COCKSCOMB | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 68.48 | 0.0632 |
| GOLDENROD | 954 | 483.42 | 61/3.177 | 28.60 | 1333 | 78.96 | 0.0596 |
| MAGNOLIA | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 72.58 | 0.0596 |
| CAMELLIA | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 77.53 | 0.0569 |
| HAWKWEED | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 76.08 | 0.0569 |
| LARKSPUR | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 80.12 | 0.055 |
| BLUEBELL | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 78.63 | 0.055 |
| MARIGOLD | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 86.28 | 0.0511 |
| HAWTHORN | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 92.45 | 0.0477 |
| NARCISSUS | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 98.61 | 0.0447 |
| COLUMBINE | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 104.78 | 0.0421 |
| CARNATION | 1431 | 725.1 | 61/3.89 | 35.03 | 1999 | 107.68 | 0.0398 |
| GLADIOLUS | 1510.5 | 765.35 | 61/4.00 | 35.09 | 2110 | 113.65 | 0.0376 |
| COREOPSIS | 1590 | 805.68 | 61/4.099 | 36.51 | 2221 | 119.64 | 0.0358 |
| JESSAMINE | 1750 | 886.71 | 61/4.302 | 38.73 | 2445 | 131.68 | 0.0325 |
