| MOQ: | 0,5KM |
| giá bán: | 0.19-10.99USD |
| bao bì tiêu chuẩn: | Trống gỗ / trống thép |
| Thời gian giao hàng: | 15 ngày trở lên |
| phương thức thanh toán: | Thư tín dụng, D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp: | 50000 Kilomet mỗi tháng |

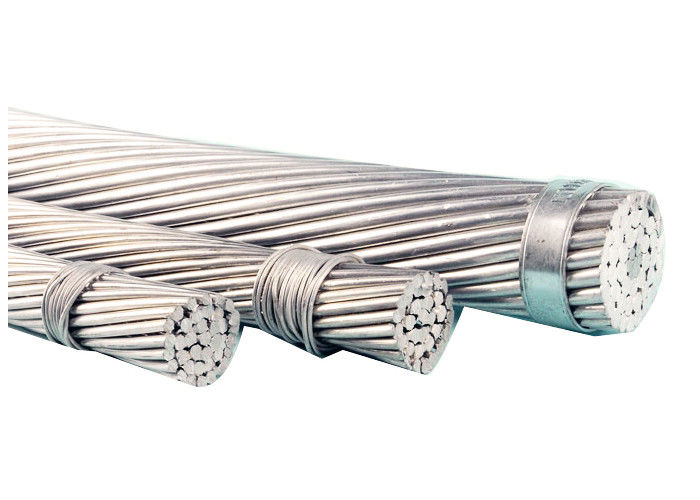

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC |
| EN 51082 | ||||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 | |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 | |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 | |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 | |
| Ant | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 | |
| Fly | 63.6 | 7 | 3.40 | 10.2 | 173.7 | 10.49 | 0.4497 | |
| Bluebottle | 73.6 | 7 | 3.66 | 11.0 | 201.3 | 11.78 | 0.3880 | |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 | |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.3400 | |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.30 | 0.2989 | |
| Wasp | 106.0 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 | |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 | |
| Bee | 132.0 | 7 | 4.90 | 14.7 | 360.8 | 21.12 | 0.2165 | |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 | |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 | |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 586.0 | 34.12 | 0.1348 | |
| Spider | 237.6 | 19 | 3.99 | 20.0 | 652.9 | 38.01 | 0.1210 | |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 | |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 | |
| Moth | 373.1 | 19 | 5.00 | 25.0 | 1025.3 | 59.69 | 0.0770 | |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 | |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 | |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 | |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 | |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 | |
|
|
