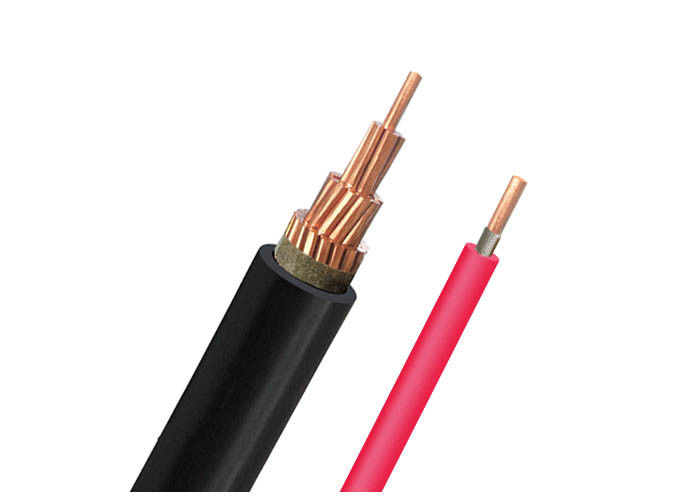

Mica + XLPE Insulated LSZH Sheathed Fire Proof Cable IEC60332 300 / 500V

300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Cables IEC60332

Fire Resistant Fire Alarm Cable

Rated Voltage: 300/500V 0.6/1KV

Model: FR FireAlarm

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2

Application:

These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels

Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation: XLPE or LSZH compound

Sheath: LSZH compound

Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature :100 meters per roll or wooden drum or as per requirement

Production Capacity :20 kilometer/ day

MOQ : 5000 meters for small size, 1000 meters for big size

Applications

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Fire Resistant Cables (Single-Core)

• Rated voltage: 450/750V, 600/1000V
• Construction: Bare stranded or solid copper conductor / Mineral ceramic (Mica/Glass) fire resistant tape / LSOH insulation
• Range: 0.5mm² – 400mm²
• Application: For fixed wiring / Essential safety circuits where the cable is protected by trunk or conduit
