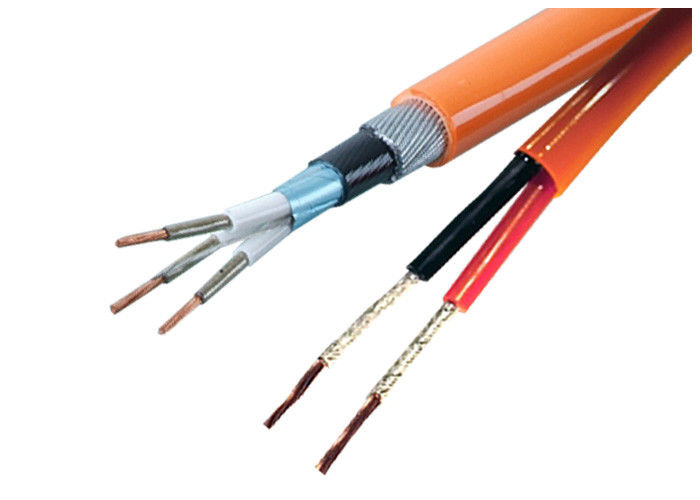

Steel Wire Armoured Muti Core CU / XLPE / PVC FRC Fire Proof Cable 0.6/1kV CE ROHS Certified

Steel Wire Armoured Muti Core CU / XLPE / PVC FRC Fire Proof Cable 0.6/1kV CE ROHS Certified

MOQ: 200m
giá bán: USD0.03-50
bao bì tiêu chuẩn: 100m / cuộn hoặc tùy chỉnh
Thời gian giao hàng: Theo yêu cầu
phương thức thanh toán: L/C, T/T
Khả năng cung cấp: 10KM mỗi tuần
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
CE/KEMA/ISO/PCCC
OEM:
Chấp nhận được
Thuật ngữ thương mại:
FOB hoặc CIF
Vật liệu cách nhiệt:
PVC / XLPE
Mẫu:
Miễn phí cho 10cm
Số lượng lõi:
1,2,3,4,5
Màu áo khoác:
Cam hoặc tùy chọn
Mức điện áp:
0,6 / 1kV
Làm nổi bật:

fire rated cable

,

fire proof electrical cable

Mô tả sản phẩm

Steel Wire Armoured Muti-core CU/XLPE/PVC FRC Cable 0.6/1kV CE ROHS Certified


Application:


It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.


Using features:


1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV.
2. No. of core: Single-core, Three-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250.
4. D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.
5. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:.


For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.


8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.



This series includes:



Copper (aluminum) core, XLPE insulated and sheathed power cables.
Copper (aluminum) core, XLPE insulated, PE sheathed power cables.
Copper (aluminum) core, XLPE insulated, steel tape armoring PVC sheathed power cables.
Copper (aluminum) core, XLPE insulated, steel tape armoring, PE sheathed power cables.
Copper (aluminum) core, XLPE insulated, steel wire armoring, PVC sheathed power Cables.
Copper (aluminum) core, XLPE insulated, steel wire armoring, PE sheathed power cables



Technical data



Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 18/30kV, 21/35kV, 26/35kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables



Installation


This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed,so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.


1. The products are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.


Voltage grade is up to 35kv, cross-section area can be up to 400 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.


2. Brief Construction:


Single core or multi-core

Copper or aluminium conductor

XLPE insulation

Copper tape or copper wire screen

Galvanized steel wire armored

PVC or PE sheath

...


Steel Wire Armoured Muti Core CU / XLPE / PVC FRC Fire Proof Cable 0.6/1kV CE ROHS Certified 0
