| MOQ: | 300 triệu |
| giá bán: | 0.38-25.6 |
| bao bì tiêu chuẩn: | Trống gỗ hoặc trường hợp |
| Thời gian giao hàng: | Theo lịch trình |
| phương thức thanh toán: | L/C, T/T |
| Khả năng cung cấp: | 50KM / tháng |

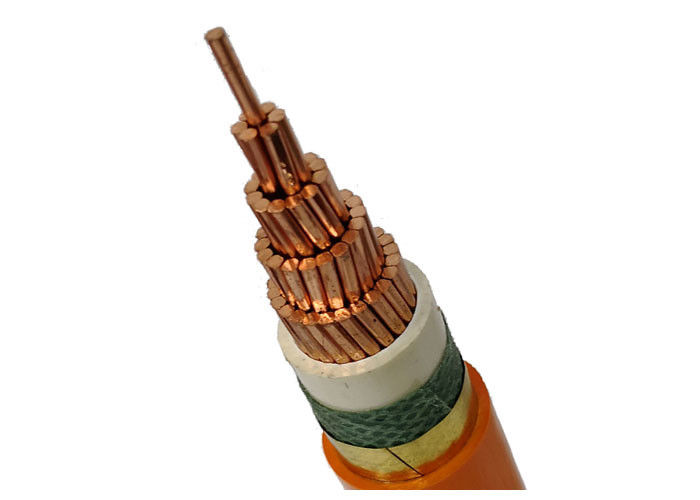

Single Core BS EN 60332-3-24 NHXH Safety Cable 0.6/1kV LSZH Cable
.
Application for Fire Resistive Power Cable, Fire Rated Power Cable
| Type | BS EN 60332-3-24 NHXH Safety Cable 0.6/1kV Cable | |
| Voltage Rate | 0.6/1kv | |
| Application | Safety cables are used in all locations where a high degree of protection against fire and fire damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground or into water. Fire resistant to FE 180 and Circuit Integrity to E 30. | |
| Standard | Adapted to DIN VDE 0266, DIN VDE 0276-604 DIN VDE 0472-814, DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification), IEC 60332-3.CatC BS EN 60332-3-24 | |
| Constructions | Conductor: | Solid or stranded copper conductor Class 1 solid copper conductor to BS EN 60228 (previously BS 6360) Class 2 stranded copper conductor to BS EN 60228 (previously BS 6360) |
| Insulation: | Halogen-free, similar ceramic polymer Type HXI 1 according to VDE 0266 | |
| Inner Sheath | Halogen-free compound | |
| Sheath | Halogen-free polymer Type HM 4 according to VDE 0207 | |
| Max. Operating Temperature | +250°C | |
| Outer Sheath Colour | Orange | |
| Conductor | : | Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper |
|---|---|---|
| Fire Barrier | : | Mica Tape |
| Insulation | : | XLPE (For FR-200) or LSOH (For FR-300) |
| Sheath | : | LSOH |
| Insulation Colour | : |
2C – Brown & Blue 3C – Brown, Black & Grey 4C – Brown, Black, Grey & Blue 2C+E – Brown, Blue + Green/Yellow 3C+E – Brown, Black, Grey + Green/Yellow 4C+E – Brown, Black, Grey, Blue + Green/Yellow 5C & above – White Cores Printed With Number |
Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".
|
|
