| MOQ: | 500m |
| giá bán: | USD 0.5-50/meter |
| bao bì tiêu chuẩn: | Trống gỗ khử trùng |
| Thời gian giao hàng: | Theo lịch trình |
| Khả năng cung cấp: | 18Km mỗi tuần |

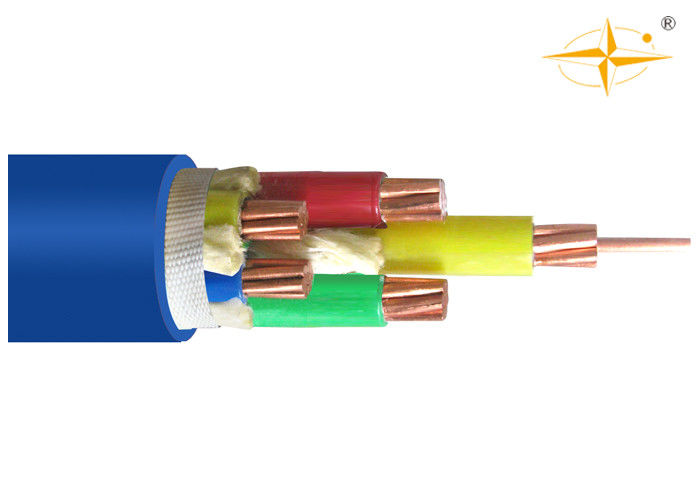

Safe Insulated Sheathed Power Low Smoke Zero Halogen Cable , Fire Resistance Cable
Conductor:
Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.
Insulation:
Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.
The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.
XLPE:
Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G
Armour :
When armouring is required, the armour consists of single layer of galvanised steel wires/
galvanized steel tapes.The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.
Outer sheath :
Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or
printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.
Standards:
International: IEC 60502, IEC 60227 IEC 60331, IEC 61034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage: 0.6-KV
Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of
conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%
| Type | Description | Cores | Nominal Cross Section |
|
WDZA-YJY WDZB-YJY WDZC-YJY |
Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJY23 WDZB-YJY23 WDZC-YJY23 | Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJY33 WDZB-YJY33 WDZC-YJY33 | Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJLY WDZB-YJLY WDZC-YJLY | Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJLY23 WDZB-YJLY23 WDZC-YJLY23 | Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
| WDZA-YJLY33 WDZB-YJLY33 WDZC-YJY33 | Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 |
1.5~800mm2 |
About Shenghua:
The biggest cable Manufacturer in China
Listed as No.2 of TOP 10 Cable Manufacturers
3 branch factories listed as Top 10 Cable Factories in China
Originated in 1950 and found in 1997
21 branch factories around China
80--available types of cables
600--sales branches and offices around the world
5000--Employees
1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount
