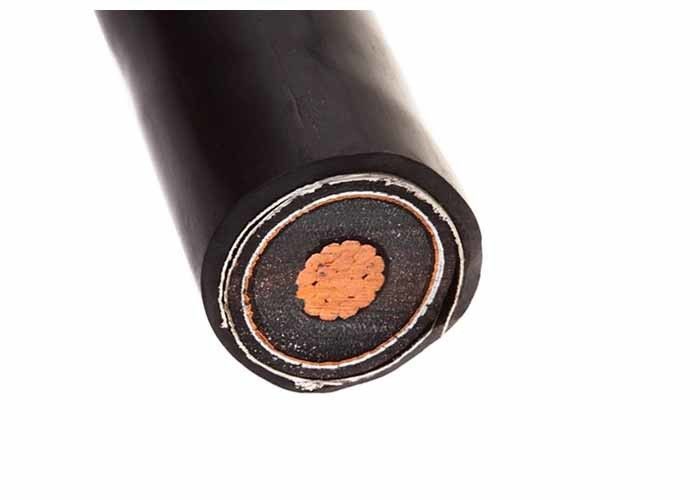

Single Phase Armoured Electrical Power Cable HT 24KV Steel Tape Round Steel Wire

Single Phase Armoured Electrical Power Cable HT 24KV Steel Tape Round Steel Wire

MOQ: 200m
giá bán: USD 1.66-6.88/M
bao bì tiêu chuẩn: Trống gỗ
Thời gian giao hàng: 7 ngày
phương thức thanh toán: L/C, T/T
Khả năng cung cấp: 563790KM / tuần
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
ISO,CE,IEC,TUV,KEMA
Cái khiên:
Băng đồng
Nhạc trưởng:
Đồng bị mắc kẹt
Áo khoác:
NHỰA PVC
Mẫu:
Miễn phí
Thiết giáp:
Dây thép tròn.
Kiểm tra điện áp:
35KV
Làm nổi bật:

armored electrical wire

,

armored cable wiring

Mô tả sản phẩm

Single Phase HT 24KV Steel Tape Armoured Electrical Power Cable Biggest Cable manufacturer.



High Tension Armoured Power Cable Power Cable Details



YJ: XLPE insulation

V: PVC sheath

32:Steel wire armoring—3 cores

22:Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant



Construction



1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH



MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable



Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standards



International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -20°C till +90°C
  fixed   -20°C till +90°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 50265-2-1





*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length



Certificate



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
