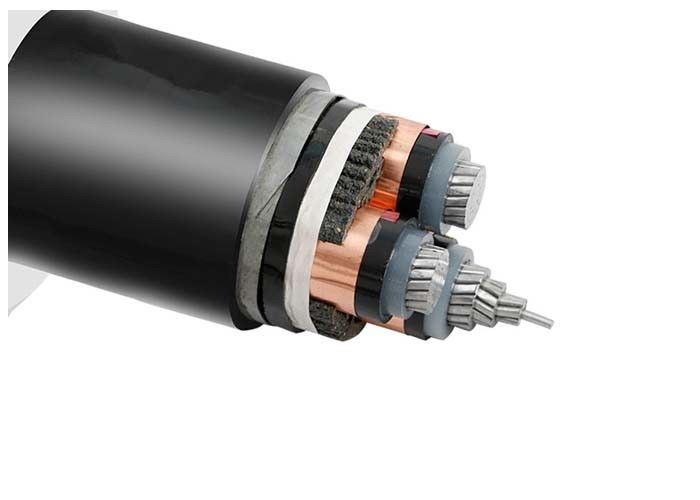

High Voltage Aluminum Conductor XLPE Insulated Steel Armoured Electrical Cable 3 Cores 3x400 mm2 35kV

High Voltage Aluminum Conductor XLPE Insulated Steel Armoured Electrical Cable 3 Cores 3x400 mm2 35kV

MOQ: 500m
giá bán: 2.0~60USD/m
bao bì tiêu chuẩn: Trống gỗ hoặc trống thép
Thời gian giao hàng: 10 ngày trở lên
phương thức thanh toán: Thư tín dụng, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp: 500km mỗi tháng
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
IEC60502 KEMA
Nhạc trưởng:
Nhôm
Vật liệu cách nhiệt:
XLPE
Giáp:
Băng thép hoặc dây thép
Vỏ bọc bên trong và bên ngoài:
NHỰA PVC
Mức điện áp:
Từ 2KV lên tp 35 KV
Lõi số:
3
Làm nổi bật:

armored electrical wire

,

armored cable wiring

Mô tả sản phẩm

High Voltage Aluminum Conductor XLPE Insulated Steel Armoured Electrical Cable Three Cores 3x400mm2 35kV





Constructions

Stranded bare aluminum conductor
Inner layer of semi-conducting material
Core insulation of cross-linked polyethylene
Outer layer of semi-conducting material
Screen of copper tape

Fillers strip, Yarn, or Paper
Non woven wrapping tape

Extruded PVC inner covering

Galvanized Steel Tape Armour
Overall Sheath polyvinylchloride (PVC) or FR-PVC, PE, LSOH



Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For Layling indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 2-35 kV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%





Code name

YJ: XLPE insulation

V: PVC sheath

32:Steel wire armoring—3 cores

72: Aluminum wire armoring—1 core

ZR: Flame resistant



MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core Al Core
YJV, N2XSY;PVC sheathed power cable YJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable




Certificates

CE, RoHS, CCC, KEMA and more others at request



4 Table of the voltage, cores and cross-section

Item Category A ,B 3.6/6kV 6/10kV 8.7/15kV 12/20kV 18/30kV 21/35kV
Category A ,B 6/6kV 8.7/10kV 12/15kV 18/20kV - 26/35kV
Single core mm2 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
Three core mm2 25-400 25-400 35-400 50-400 50-400 50-400



The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.



Packing & Shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

High Voltage Aluminum Conductor XLPE Insulated Steel Armoured Electrical Cable 3 Cores 3x400 mm2 35kV 0
