Aluminum Conductor Steel Wire Armoured Electrical Cable 3 Cores XLPE Insulated MV Power Cable

Aluminum Conductor Steel Wire Armoured Electrical Cable 3 Cores XLPE Insulated MV Power Cable

MOQ: 500 mét
giá bán: US$0.45~122 / Meter
bao bì tiêu chuẩn: Trống
Thời gian giao hàng: 10 ngày làm việc
phương thức thanh toán: T/T, THƯ TÍN DỤNG
Khả năng cung cấp: 10.000 KM mỗi tháng
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
ISO,CE,IEC,TUV,KEMA
dòng sản phẩm:
Cáp bọc thép Al
Vật liệu dẫn:
Nhôm
Vật liệu cách nhiệt:
XLPE
Loại áo giáp:
SWA
Số lõi:
3 lõi
Vôn:
Trung thế
Tiêu chuẩn thực hiện:
Thông tin liên lạc, BS, IS, VDE
Bảo hành:
hai năm
Làm nổi bật:

armored electrical wire

,

armored cable wiring

Mô tả sản phẩm

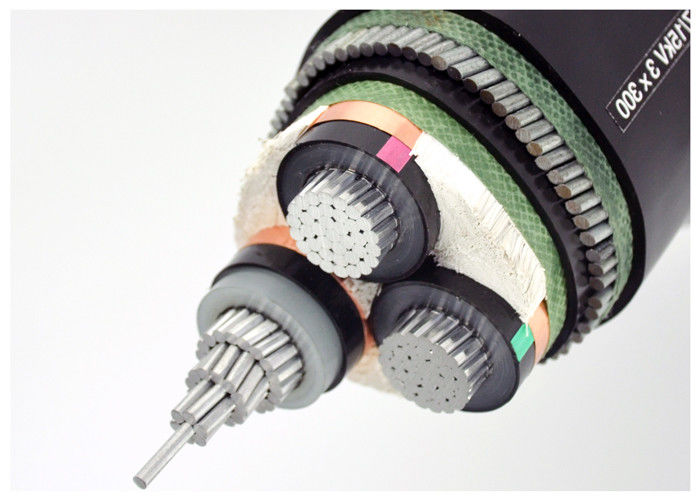

Aluminum Conductor Steel Wire Armoured Electrical Cable 3 Cores XLPE Insulated MV Power Cable







Structure



Stranded bare aluminum conductor
Inner layer of semi-conducting material
Core insulation of cross-linked polyethylene
Outer layer of semi-conducting material
Screen of copper tape

Fillers strip, Yarn, or Paper
Non woven wrapping tape

Extruded PVC inner covering

Galvanized Steel Tape Armour
Overall Sheath polyvinylchloride (PVC) or FR-PVC, PE, LSOH





Application



Apply to shafts,water and soil,able to bear the larger positive pressure.





Standard



International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV32, ZR-YJV72 only)

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV32, ZR-YJV72 only)

Other standards such as BS,DIN and ICEA upon request





Code name



YJ: XLPE insulation

V: PVC sheath

32:Steel wire armoring—3 cores

72: Aluminum wire armoring—1 core

ZR: Flame resistant



MV(6 to 35kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core Al Core
YJV, N2XSY;PVC sheathed power cable YJLV, NA2XSY; PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable YJLV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable




Technical data



Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D for single core

12 x cable O.D for multi core



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2






Certificate



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request





Aluminum Conductor Steel Wire Armoured Electrical Cable 3 Cores XLPE Insulated MV Power Cable 0




This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
