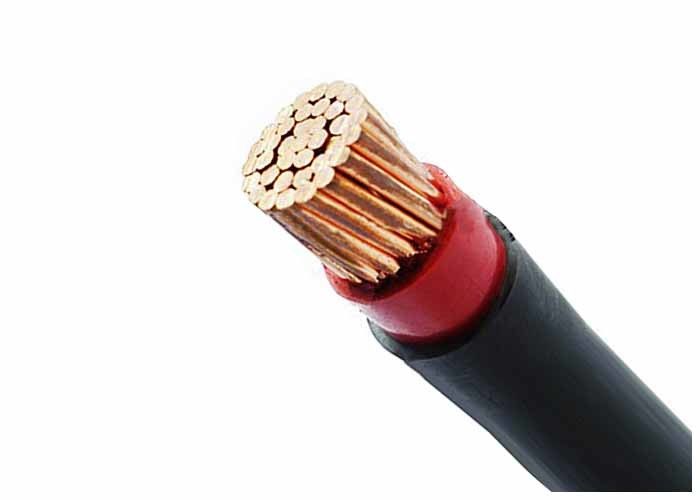

Single Core 0.6/1kV PVC Insulated Power Cable for Power Transmission KEMA

Single Core 0.6/1kV PVC Insulated Power Cable for Power Transmission KEMA

MOQ: 500m
giá bán: 0.3-99 USD/Meter
bao bì tiêu chuẩn: Trống sắt
Thời gian giao hàng: 15 ngày làm việc
phương thức thanh toán: L / C, D / A, D / P, T / T
Khả năng cung cấp: 5000KM mỗi tháng
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
QINGDAO YICABLE CABLE
Chứng nhận
ISO,CE,KEMA GOST
ứng dụng:
Công nghiệp
Kiểu:
Điện áp thấp
Vật liệu cách nhiệt:
XLPE
Mức điện áp:
0,6 / 1 kV
Kiểm tra điện áp:
3,5 kV trong 5 phút
Tiêu chuẩn tham chiếu:
IEC60502-1
Làm nổi bật:

copper pvc wire

,

pvc sheathed wiring

Mô tả sản phẩm



Single Core 0.6/1kV PVC Insulated Power Cable for Power Transmission KEMA





Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.



Construction

Conductor: Plain annealed copper, class 1 solid or class 2 stranded acc. to IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.

Outer Sheath: PVC ST8 (90°C) of IEC 60502-1.

Outer Sheath Colour: Black or other color as per customer request.



Electrical Characteristics
Recommended rated voltages U0

Highest system voltage(Um) (kV) Rated voltage (U0) (kV)
Categories A and B Category C
1,2 0,6 0,6



Routine test voltages

Rated voltage U0 (kV) 0,6
Test voltage (kV) 3,5



Maximum conductor temperatures for different types of insulating compound

Maximum conductor temperature (°C)
Normal operation Short-circuit (5 s
maximum duration)
90 250



Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes



Installation Refference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 70



Reference Standards
Design: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC 60332-1, BS EN60332-1



Single Core 0.6/1kV PVC Insulated Power Cable for Power Transmission KEMA 0
