| MOQ: | 500m |
| giá bán: | 0.2-150USD |
| bao bì tiêu chuẩn: | Trống sắt |
| Thời gian giao hàng: | 15 ngày làm việc |
| phương thức thanh toán: | L / C, D / A, D / P, T / T |
| Khả năng cung cấp: | 5000KM mỗi tháng |

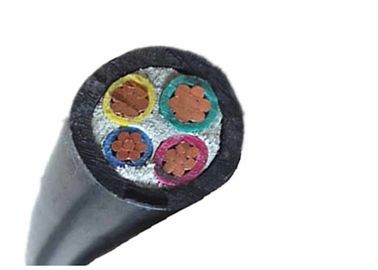

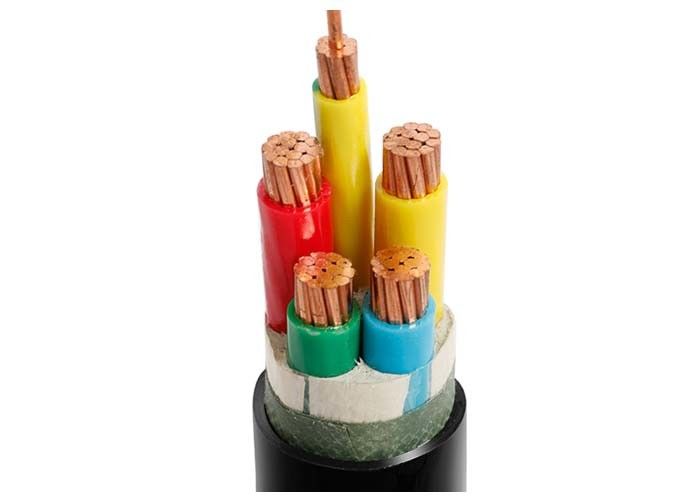

Stranded Copper Conductor 1kV PVC Insulated and Sheathed Power Cable
Applications: For mains,submains and subcircuits unenclosed, in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable for glanding.
Construction:
| Rated voltage | 0.6/1kV Low Voltage |
| Maximum Conductor Temperature | Under normal (75℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions |
| Min. Ambient Temp | 0 ℃, after installation and only when cable is in a fixed position |
| Min. Bending Radius | 15 x cable O.D for multi core without armor |
Standards:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Certificates:
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
Technical parameter:
| Cross section of conductor | Thickness of insulation | Thickness of Sheath | Approx.cable diameter | Max.resistance of conductor at 20 ℃ | Test Voltage(AC) |
| mm2 | mm | mm | mm | ohm/km | KV/5min |
| 2x1.5 | 0.8 | 1.8 | 10.5 | 12.1 | 3.5 |
| 2x2.5 | 0.8 | 1.8 | 11.3 | 7.41 | 3.5 |
| 2x4 | 1.0 | 1.8 | 13.1 | 4.61 | 3.5 |
| 2x6 | 1.0 | 1.8 | 14.1 | 3.08 | 3.5 |
| 2x10 | 1.0 | 1.8 | 16.7 | 1.83 | 3.5 |
| 2x16 | 1.0 | 1.8 | 18.8 | 1.15 | 3.5 |
| 2x25 | 1.2 | 1.8 | 22.2 | 0.73 | 3.5 |
| 2x35 | 1.1 | 1.8 | 24.5 | 0.524 | 3.5 |
| 2x50 | 1.4 | 1.8 | 21.8 | 0.387 | 3.5 |
| 2x70 | 1.6 | 1.9 | 24.7 | 0.268 | 3.5 |
| 2x95 | 1.6 | 2.0 | 29.2 | 0.193 | 3.5 |
| 2x120 | 1.8 | 2.1 | 31.3 | 0.153 | 3.5 |
| 2x150 | 2.0 | 2.2 | 34.7 | 0.124 | 3.5 |
| 2x185 | 2.2 | 2.4 | 37.9 | 0.0991 | 3.5 |
| 2x240 | 2.4 | 2.4 | 44.3 | 0.0754 | 3.5 |
| 2x300 | 2.6 | 2.5 | 49.0 | 0.060 | 3.5 |
| 2x400 | 2.6 | 2.8 | 56.0 | 0.0470 | 3.5 |
Packing and shipping:
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment:
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
|
|
